ebs: intel Changes for 4.32

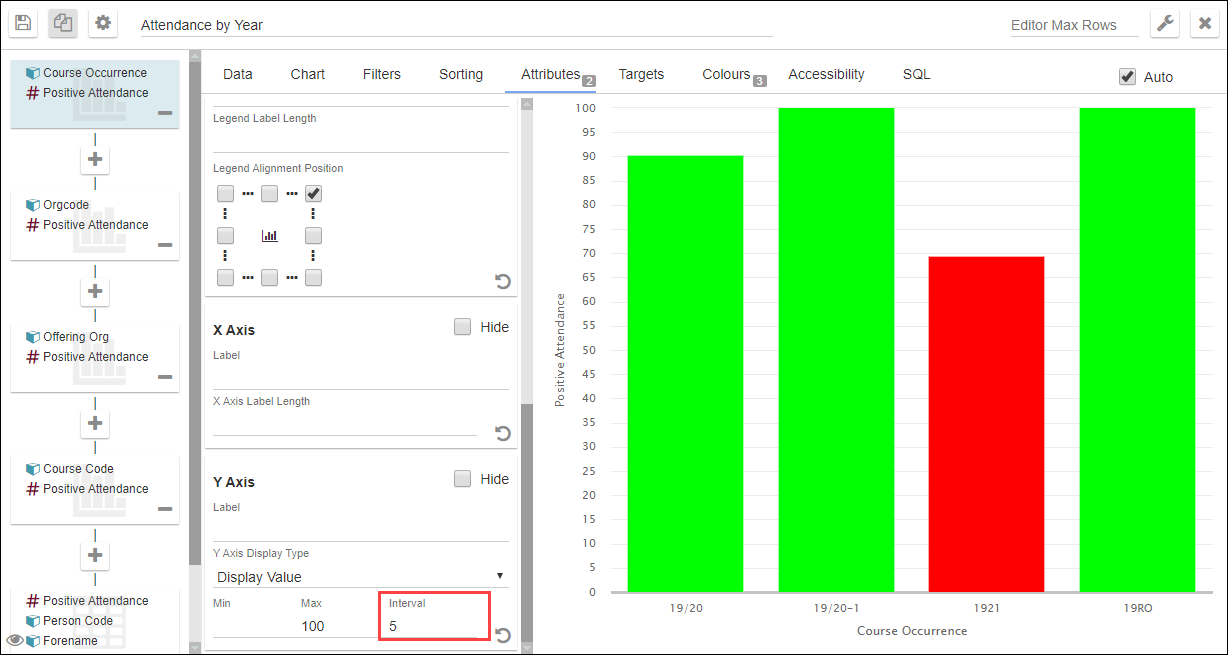

Users can now define y-axis interval numbers for a chart, using the new Interval field on the Y Axis panel on the Attributes tab.

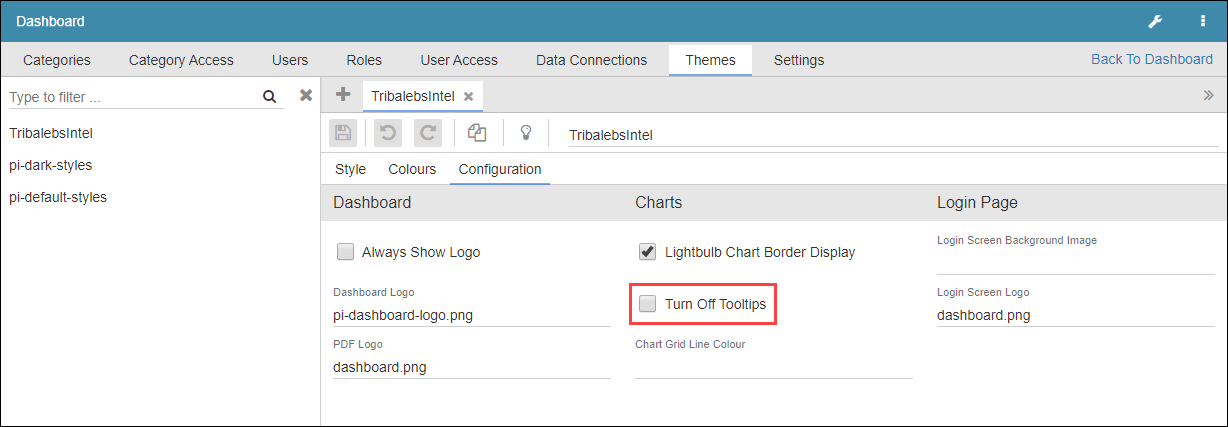

The Turn Off Tooltips check box has been added to the Configuration tab under the Themes tab.

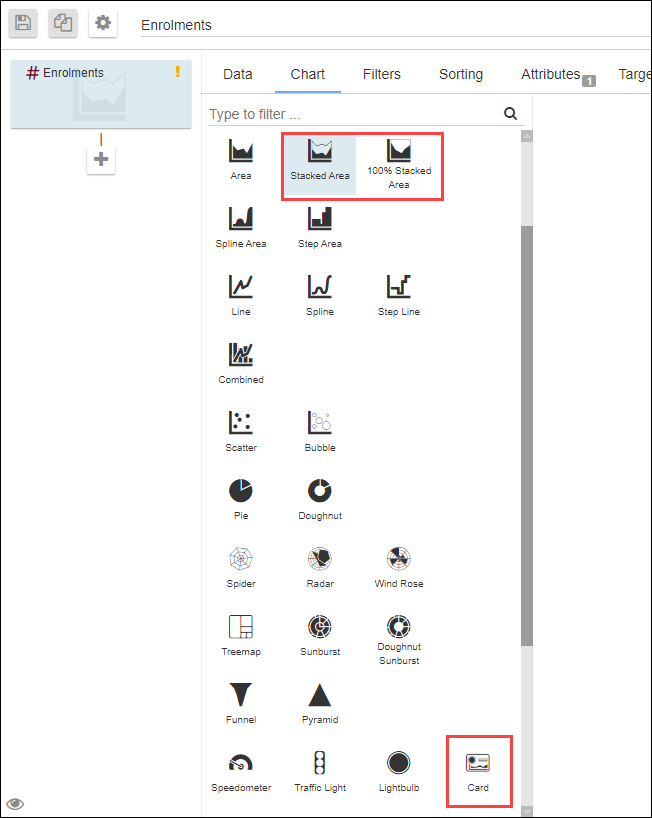

The following charts can now be selected in the Chart tab:

• Card Chart

• Stacked Area Chart

• 100% Stacked Area Chart

Back to top

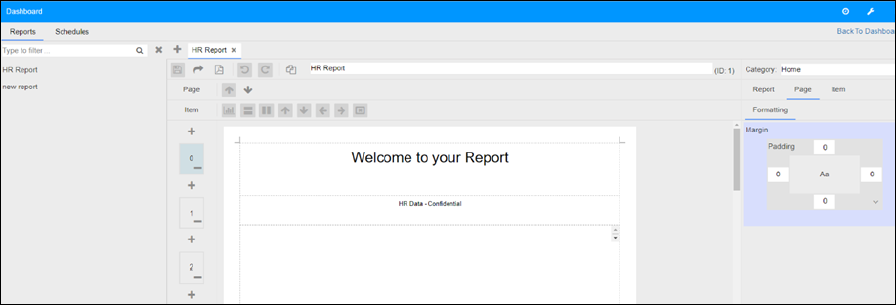

The new Pi Report module allows you to create and schedule reports.

Reports are created from existing elements which already exist within your dashboards. The scheduler bursts content to users, meaning that you only need to create a schedule once and decide who you want to distribute it to.

Note: This requires a licence. Contact your account manager for further information.

Back to top

Users can now label lines and bands using the new Label fields on the Targets tab.

Back to top

You can now style the dashboard using themes instead of style files.

This implementation has the following important changes that impacts the current styling process:

• Each theme now has its own colours instead of a general colour pallet for all themes
• The Colours tab has been removed from configuration screen
• Each theme now has its own properties
• The panMISDashboardResources/style/pi.properties file has been removed, as it is now migrated to the theme properties
• Styles have been converted to themes - folders are now themes instead of the css style files
• Each theme is composed of a theme.css and theme.json file
• The variable PI_PROPERTIES that was already deprecated has been removed
• Changed all users STYLESHEET_FILENAME to not contain .css extension so the dashboard uses the theme
• Each theme now has its own login PDF logo and screen definition
• All PI_LOGO variable values have been removed, as the current PI_LOGO global system variable is included in all of the themes
• All PI_PDF_LOGO variable values have been removed, as the current PI_PDF_LOGO global system variable is included in all of the themes

Note: If you want to change the styles, it is recommended that you create your own theme rather than editing the default Tribal one, as you may lose your changes on an upgrade.

Back to top

The dashboard repository now uses MariaDB instead of HyperSQL. It is strongly recommended that you migrate to MariaDB.

A new setting is displayed on the ebs: intel installer where you can select which database you are using.

Back to top
