General (Cross-System) Institution Settings

The General (Cross-System) screen contains generic institution settings that are applied across the ebs system.

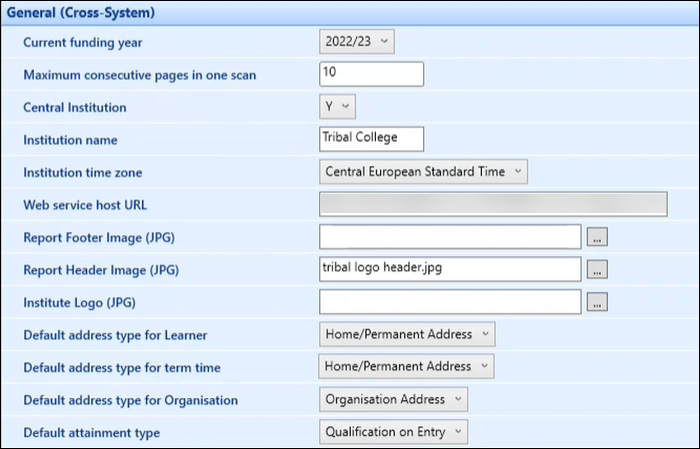

General (Cross-System) institution settings screen

The fields on the General (Cross-System) screen are described in the following table.

This field	Holds this information...
Current funding year	The current funding year.
Maximum consecutive pages in one scan	The maximum number of pages a user can scan at once. This is set to 10 by default. Note: This institution setting is only displayed when a valid EBS4DocumentScanning licence is held.
Central Institution	This institution setting is not in use.
Institution name	The name of the institution. This will be displayed in ebs and on reports.
Institution time zone	The institute's time zone. Note: The time zones are sourced from the database and not from ebs. Refer to Time Zone Conversion for further information.
Web service host URL	The URL for the ebs web service that is stored on the ebs Application Server. Note: To view your REST Services documentation, copy the Web service host URL to a browser and append /docs to the URL (for example: http://webservicehostURL/docs).
Report Footer Image (JPG)	The image for the report footer in the Correspondence Management module. Note: This must be in .jpg format.
Report Header Image (JPG)	The image for the report header in the Correspondence Management module. Note: This must be in .jpg format.
Institute Logo (JPG)	The institution's logo. This will be included in the footer of emails sent from the following workflows: Enrolment Completed V4 Email report V4 Rest Workflow V4 Send Learner Email Document Signature Requested (Email) V1 Send Enrolment Confirmation Email Send Application Confirmation Email Send Enquiry Confirmation Email Send Learner Created Confirmation Email Send Application Confirmation Email Learner Portal Re-engagement Email
Default address type for Learner	The default address type displayed in the Address Type field when adding learner details.
Default address type for term time	The default address type during term time.
Default address type for Organisation	The default address type when creating a new organisation.
Default attainment type	The default attainment type to be used. Select from the drop-down list.
Default country of domicile	The default code displayed in the Country of Domicile field when adding learner details.
Age Reference Date	The date used to calculate the age of a learner for display in the software where ‘people’ data is entered.
Default ethnicity	The default code displayed in the Ethnicity field when adding learner details.
Default nationality	The default code displayed in the Nationality field when adding learner details.
Directory services LDAP path	The LDAP directory service path
Min age	The minimum age at which learners can be enrolled. This is used to determine whether the calculated age is in the correct range.
Address verifier	The address verifier for the institution (for example: Quick Address). Note: The Address verifier institution setting is only displayed when a valid EBS4AFD or QuickAddress licence is held.
Allow learners on an ebs: central interview to overlap	Whether to allow learners on an interview event to overlap.
Max age	The maximum age at which learners can be enrolled. This is used to determine whether the calculated age is in the correct range.
Are duplicate people unit records allowed?	Whether duplicate people unit records are allowed. Select from the following: Duplicates allowed but warning given No duplicates (ignore non active units)
ebs: central - web URL	The ebs web address.
ebs: central. Show icon for ebs4 web	Whether to display the Web button on the Start ribbon, as ebs Web is no longer supported. Note: This defaults to 'N'.
Maximum file size for inserting existing photo (in KB)	The maximum file size for inserting existing photos.
Store uploaded learner documents in the database?	Whether to store uploaded documents in the database.
Link ebs: central sessions to Web Products sessions	Whether to link ebs sessions to web products sessions.
Overwrite college login?	Whether the creation of new ebs: ontrack Learner Hub users for ebs PEOPLE records will overwrite the current COLLEGE_LOGIN field.
Maximum records returned (Learning Aims)	This institution setting is no longer in use.
Minutes session can be idle	The number of minutes the session can be idle before closing.
Expand the reports tree by default	Whether to expand the reports tree by default.
Reporting process used	The reporting process used. Select from the following: Microsoft Access Reporting Services
Default email address preference	The default learner email address to send correspondence to in the Correspondence Wizard.
From email address	The ‘From’ e-mail address to be used when sending emails.
From email display name	The default 'From' email display name. You can override this field manually if required in the relevant workflow.
Reply To email address	The default 'Reply To' email address. You can override this field manually if required in the relevant workflow.
Reply To email display name	The default 'Reply To' email display name. You can override this field manually if required in the relevant workflow.
Email button behaviour	The behaviour to be used when the Email Learner button is clicked.
Number of days to be added for due dates of tasks inserted by workflow	The number of days to be added for due dates of tasks inserted by workflow.
How many days to keep Workflow Debug Data	The number of days that the system maintains workflow debug data.
How many days to keep Workflow Tracking Data	The number of days that the system maintains workflow tracking data.
How many days to keep detailed Workflow Tracking Data	The number of days that the system maintains detailed workflow tracking data.
Show workflow service status indicator	Whether to display the workflow service status indicator on the Home ribbon in ebs: central. This defaults to 'Y'. Note: This setting is hidden for cloud systems and is set to 'N'.
Default funding year for Reference Data section	The default funding year to be used for the reference data section.
Store uploaded documents in the file system?	Whether to store uploaded documents in the file system. Y - Stores uploaded or cloned documents to the file system location specified in the Directory path for uploaded files when storing to file system institution setting. For storing data in on a network location check the section below the table. N - Stores uploaded or cloned documents in the database
Directory path for uploaded files when storing to file system	The default storage location for files uploaded to the file system from ebs: central and ebs: ontrack software. Note: The directory path should be a network or shared drive that is consistently named and accessible by both ebs: central users and the REST services. Note: Extra steps are required for setting up a network location. See Move Data to a Network Location below.
Progress code security in Reference Data	Whether a Reference Data user can associate each application and enrolment progress code with one user role. Select from the following: Exclusion list of users Inclusion list of roles - the Reference Data user can associate one ebs user role with an application, enquiry or enrolment progress code
Enable the web dockable targets	Whether new target windows opened in ebs Web are docked to the main window. Select N to disable the ebs Web dockable target functionality.
Fax number	The fax number of the institution.
Support Telephone Number	The support telephone number. This is displayed in error messages in ebs: ontrack Hub.
Support Fax Number	The support fax number. This is displayed in error messages in ebs: ontrack Hub.
Support Email	The support email address. This is displayed in error messages in ebs: ontrack Hub.
Support URL	The support URL. This is displayed in error messages in ebs: ontrack Hub.
Permitted File Upload Extensions	The file upload extensions that can be used in ebs are as follows: Bitmap (.bmp) Excel (.xlsx) Excel 97-2003 (. xls) GIF (.gif) JPEG (.jpeg) PDF (.pdf) PNG (.png) Power Point (.pptx) Power Point 97-2003 (.ppt) Rich Text Format (.rtf) TIFF (.tif) Visio 97-2003 (.vsd) Word (.docx) Word 97-2003 (.doc) Zip (.zip) Mp3 (.mp3) PCD (. pcd) fpx (.fpx) Text (.txt)
Automatic Searches	Whether to enable automatic searches.
Cache page configuration to disk	Whether to enable saving cache page configuration to disk.
Cache page configuration for client apps to a fixed location (blank implies local machine AppData)	The location for cache page configuration for client apps, or leave blank to specify the local machine App Data.
Cache page configuration for web apps to a fixed location (blank implies local machine AppData)	The location for cache page configuration for web apps, or leave blank to specify the local machine Program Data.
The ebs user that workflow schedules run as	The ebs user that workflow schedules run as.
Unhandled error display mode	The display mode for unhandled errors. Select from the drop-down list.
Log unhandled errors to the database	Whether the system should store exception guard errors in the database. This is set to Y by default.
SSO Domain Whitelist for integrated browser	For SSO users, the domain that is required to be whitelisted so that the central integrated browser functions correctly.
SMTP mail server for sending emails	The full path to the SMTP mail server for sending emails.
SMTP mail server port	The SMTP mail server port.
SMTP mail server username	The username of the SMTP mail server for sending emails.
SMTP mail server password	The password of the SMTP mail server for sending emails.
SMTP mail server uses SSL	Whether the SMTP mail server uses SSL.
Administrative Learner Deletion Enabled	Fully remove a learner from an ebs database to comply with GDPR. Note: The Administrative Learner Deletion Enabled institution setting (on the General (Cross-System) screen) must also be set to 'Y'.
Allow warning prompts when accessing unconfirmed learners	Whether the unconfirmed learner prompts are displayed on the Learner Search window or the Learner Search, Application Search and Enrolment Search on the Home screen. This is set to Y by default. When this is set to Y, you can access unconfirmed learner records if you have the Deduplication (Client) role assigned. You are prevented from accessing unconfirmed learner records if you do not have the Deduplication (Client) role. When this is set to N, unconfirmed learner prompts are not displayed on the Learner Search window and you can access unconfirmed learner records irrespective of whether you have the Deduplication (Client) role. However, you must have the Deduplication (Client) role to access the De-duplication functionality.
Central Ribbon Colour	The colour of the ribbon throughout ebs: central. This can be used, for example, to differentiate environments more clearly.
Central online help URL	The website that is accessed when a user clicks the Help button or presses F1 in ebs: central. This is set to http://docs.ebs.tribalgroup.com/ by default, and if left blank, the Help button is not displayed.
School Principal Email Address	The email address of the school principal.
Show System Usability Survey prompt?	Whether the system usability survey is displayed 30 days after the installation of 4.22. Note: This is set to Y by default.
Store IP Address in audit access table	Whether the accessing IP Address is stored.
Xyzmo URL	The URL used for the Digital Signatures functionality.
Web products single sign-on	Whether web products use single sign-on.
Institution reference	The old FEFC institution reference code that was used in the ISR return. This is used for licence key generation.
UK Provider number	The UK Provider number.
Show Single Sign On button on login prompt?	Whether to enable the Single Sign On button on the login prompt.
Update Advanced Learner Loans Attendance from ebs: central Registers	This setting is used to specify whether the Date Last Attended For Loan field against a loan funded enrolment is maintained from ebs Registers. If you use ebs Registers, then you can use this field to maintain the date field automatically. You can also override this field manually if required.
CDR Output Path	The default CDR output path. Users can specify their own path in CDR Options, if required. However, schedules elements use the institution setting values.
College Reference	Allows you to select your college reference so you can use verifier data specific to your institution.
Provider Code	The provider code for the institution.
Transfer policy is required	Whether a transfer policy must be entered on transfer progressions.
Fees Free Current Year	The fees free current year.

Move Data to a Network Location

If the location you want to use to store files is not on a local disk then you need to use service accounts to move the data. These service accounts must have permissions to read and write from the folder.

Required steps

Configure domain service accounts for web services and workflow services
Go to institution setting , and select General (Cross-System).
1. In the field Directory path for uploaded files when storing to file system , type the network location of the folder eg. \\regulus\documents
2. Set Store uploaded documents in the file system? to Y
3. Set Store uploaded learner documents in the database? to Y.
In IIS > under site > webservices website > authentication > right click anonymous access and set the webservices account in there
Recycle webservices app pool
In Services > ebs workflow service > right click properties > logon tab > set the workflow service account
Restart workflow service
By right clicking on the destination folder ensure that the web services and workflow services both have full sharing permissions to the folder.
