Workflow Manager Changes for 4.34
The following changes have been made to Workflow Manager for the 4.34 release:

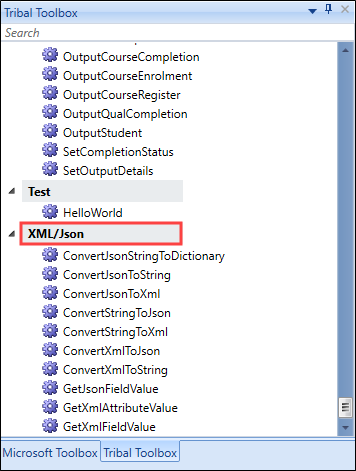

The XML/Json category has been added to the Tribal Toolbox.
The activities available in the XML/Json group are described in the following table.
| Activity | Does this... |
|---|---|
| ConvertJsonStringToDictionary |
Converts a JSON (JavaScript Object Notation) value into a dictionary object. Refer to the ConvertJsonStringToDictionary activity description for more information. |
| ConvertJsonToString |
Converts a JSON value to a string representation of a JSON object. Refer to the ConvertJsonToString activity description for more information. |
| ConvertJsonToXml |
Converts JSON value to an XML (Extensible Markup Language) value. Refer to the ConvertJsonToXml activity description for more information. |
| ConvertStringToJson |
Converts the input string to a JSON value. Refer to the ConvertStringToJson activity description for more information. |
| ConvertStringToXml |
Converts the input string to an XML value. Refer to the ConvertStringToXml activity description for more information. |
| ConvertXmlToJson |
Converts XML to a JSON value. Refer to the ConvertXmlToJson activity description for more information. |
| ConvertXmlToString |
Converts XML to a string representation of an XML object. Refer to the ConvertXMLToString activity description for more information. |
| GetJsonFieldValue |
Returns the JSON value for a field. Refer to the GetJsonFieldValue activity description for more information. |
| GetXmlAttributeValue |
Returns the XML value for an attribute. Refer to the GetXmlAttributeValue activity description for more information. |
| GetXmlFieldValue |
Returns the XML value of a field. Refer to the GetXmlFieldValue activity description for more information. |
