You can configure screens to have associated context and report links as follows:
Add context links
Each screen in a given context can have associated context links, which are displayed on the left-hand side of the screen to navigate to other screens in the same context. You can add different context links to a screen from the Add Page window.
To add a context link:
-
Click the Add Page button on the System Configuration Commands ribbon.
The Add Page window is displayed.
-
Select the context you want to add a context link to from the Context list.
-
Select the screen you want to add a context link to from the Screen list.
-

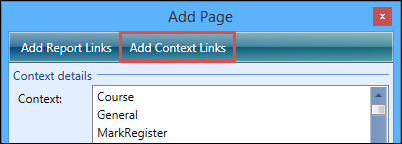

Click the Add Context Links button.
-
Click the Add Column button to add a column to the control.
-

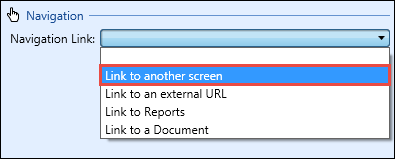

Select the Link to another screen option from the Navigation Link field in the Column Details section of the screen.
-

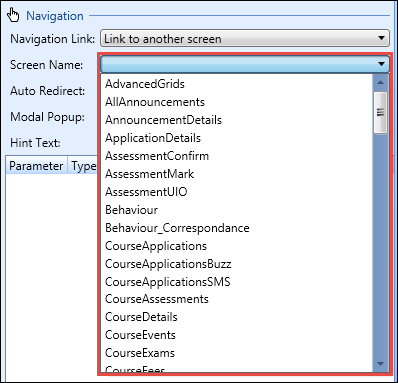

Select the screen you want to link to from the Screen Name drop-down field.
-
Click Save.
The context links are saved.
Add report links
Each screen in a given context can have a report links. You can add different reports to a screen from the Add Page window.
To add a report link:
-
Click the Add Page button on the System Configuration Commands ribbon.
The Add Page window is displayed.
-
Select the context you want to add a report link to from the Context list.
-
Select the screen you want to add a report link to from the Screen list.
-

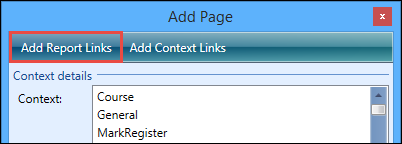

Click the Add Report Links button.
A new screen will be displayed in ontrack Designer with a _ReportLinks suffix.
-

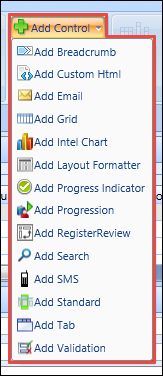

Click the Add Control button and select the required control on the System Configuration Commands ribbon to add a control to the page.
The control will be added to the page.
-
Click the Add Column button to add a column to the control.
-

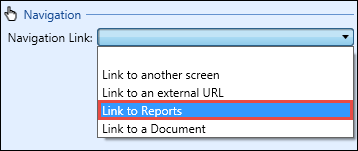

Select the Link to Reports option from the Navigation Link field in the Column Details section of the screen.
-

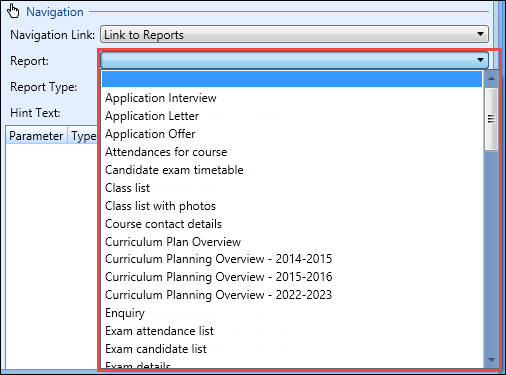

Select the report you want to add to the page from the Report drop-down field and the report type from the Report Type field.
-
Click Save.
The report links are saved.
